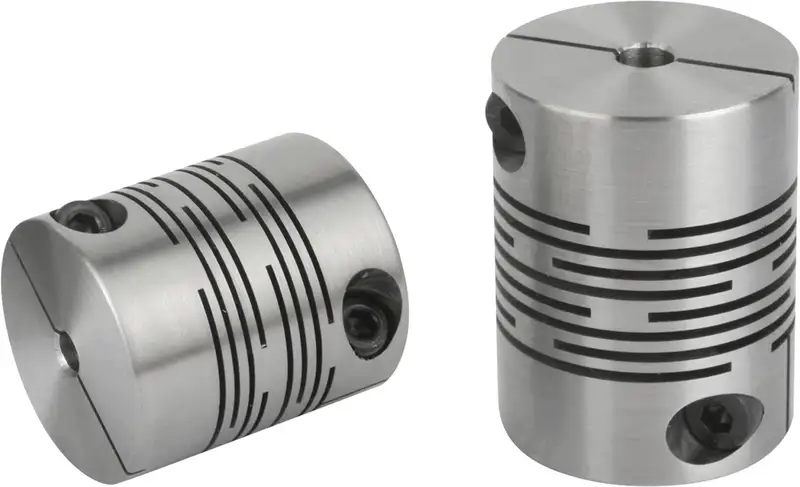

KIPP Accouplement à ressort K2038 avec moyeux de serrage
Art. 810023.0001
au lieu de CHF 117.30
- TVA comprise
- Hors frais d'expédition
- plus de KIPP
Prix échelonnés
dès 1 pièce
CHF 117.30 / pièce
dès 3 pièce
CHF 111.50 / pièce
dès 5 pièce
CHF 102.70 / pièce
Délai: dans les 10 jours
Description / Caractéristiques
Matériau : Acier inox
Plage de température : -50 °C à +150 °C
Backlash-free, torsionally rigid, flexible, and maintenance-free all-metal coupling for transmitting angularly synchronous rotary motions. The innovative slotted design allows for excellent axial, radial, and angular flexibility with low restoring forces. Ideally suited for servo motors. With clamping hubs for shaft mounting.
These stainless steel spring-loaded couplings are particularly suitable for the food and pharmaceutical industries.
The spring-loaded couplings have an H7 fit. The recommended clearance is 0.02 mm - 0.05 mm. This clearance, along with lubrication of the shaft journals, facilitates assembly and disassembly.
On request:

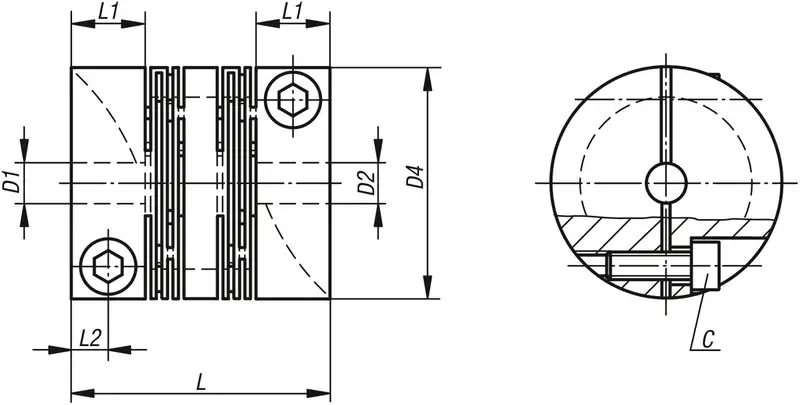

Desired hub bores D1 and D2 available separately with tolerance class or range.
Keyway according to DIN 6885.
Plage de température : -50 °C à +150 °C
Backlash-free, torsionally rigid, flexible, and maintenance-free all-metal coupling for transmitting angularly synchronous rotary motions. The innovative slotted design allows for excellent axial, radial, and angular flexibility with low restoring forces. Ideally suited for servo motors. With clamping hubs for shaft mounting.
These stainless steel spring-loaded couplings are particularly suitable for the food and pharmaceutical industries.
The spring-loaded couplings have an H7 fit. The recommended clearance is 0.02 mm - 0.05 mm. This clearance, along with lubrication of the shaft journals, facilitates assembly and disassembly.
On request:
Desired hub bores D1 and D2 available separately with tolerance class or range.
Keyway according to DIN 6885.
Caractéristiques
Télécharger les fichiers
Délai de garantie : 24 mois , Bring-In
Droit de retour : 14 jours (date du bulletin de livraison)
Droit de retour : 14 jours (date du bulletin de livraison)
